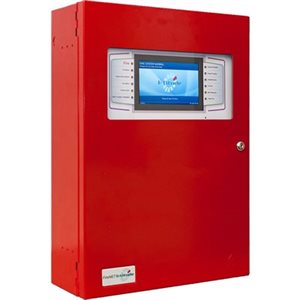

4 slc's With communicator, no network card LA203I2-10
Double-tap and hold to zoom.
Mouse over the image to zoom.

4 slc's With communicator, no network card LA203I2-10

Product Code: 0101-01660

Standard Features
• 4 loop version
•400mA loop current
•Programmable NACs; 4 Class B or 2 Class A, all with internal synchronization
• 10.25 A power supply
•3 programmable inputs and 5 programmable relay outputs
•7 inch, full-color resistive touch screen with intuitive user interface
•Up to 24 programmable soft “function keys”
•Up to 64 user login accounts
•Hard-wired fire and trouble routing inputs and out-puts
•Modular and expandable electronics
•400 subaddress points per loop (800 per loop mod-ule)
•Option to “invert” inputs and outputs
•5,000 programmable cause and effects; over 50,000 inputs and outputs
•Can be networked with programmable functionality
•Programming via USB port to PC or memory stick
